Niax A-33/Jeffcat TD-33A/Lupragen N201
Date：2023-11-17 Categories：Other products
Niax A-33/Jeffcat TD-33A/Lupragen N201
Overview:
Chinese name: polyurethane catalyst A33
Alias: Catalyst A33, Polyurethane Catalyst A33, Catalyst A33, Foaming Catalyst A33, CAS 280-57-9, Dabco 33-LV, Niax A-33, Jeffcat TD-33A, Lupragen N201, Tegoamin 33 PC CAT TD33, Addocat 105, TEDA L33, foaming catalyst, polyurethane foaming catalyst, catalyst A-33, polyurethane catalyst A-33, liquid catalyst, liquid complex amine catalyst
Polyurethane Catalyst A33 is a gel catalyst mainly used as polyurethane foam.
Synonyms A33 Polyurethane Catalyst A33, Catalyst A33, Dabco 33-LV, Niax A-33, Jeffcat TD-33A, Lupragen N201, Tegoamin 33, PC CAT TD33, Addocat 105, TEDA L33, Foaming Catalyst A33
Content 33% Triethylene diamine solution
Form Solid
Application Flexible, semi-rigid, rigid urethane foam
Chemical composition:
33% solution of triethylenediamine.
Triethylenediamine is solid at room temperature and is not convenient for use as a polyurethane catalyst. In industrial applications, it is often melted in small molecule diols and configured to be used as an alcohol solution with a mass fraction of 33% (or other concentrations).
Commonly used diols are dipropylene glycol monoacetate, propylene glycol, diethylene glycol monoacetate (diethylene glycol), ethylene glycol and so on.
Product Physical Properties:

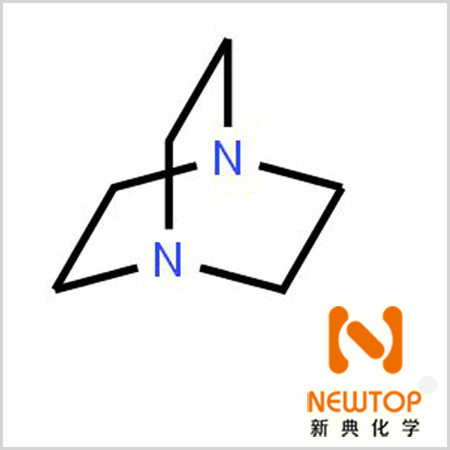

Molecular formula: C6H12N2;
Relative molecular mass: 112.17;
CAS No.: 280-57-9;
Purity ≥99%;
Moisture ≤0.5%;
Viscosity (25℃): 100mPa.s;
Density (20℃): 1.033g/cm3;
Flash point (PMCC): 79℃;
Vapor pressure (38℃): 266Pa
Product Usage:
The active ingredient of polyurethane catalyst A33 is triethylene diamine, the solution prepared by 33% of triethylene diamine and 67% of monoconjugated dipropylene glycol is mainly used as gel catalyst for polyurethane foam, which is widely used in flexible, semi-rigid, rigid polyurethane foam, coating, elastomer, In polyurethane foaming system, isocyanate firstly reacts with triethylene diamine to generate active complex. The nature of the complex is very unstable, once the urethane bond is generated, it will be free, which is conducive to further catalyzing, triethylenediamine has a strong catalytic effect on the gel reaction and foaming reaction, especially on the polyurethane and hydroxyl catalytic effect is more selective.A33 is mainly used as gel catalyst for polyurethane foams, and it is widely used in flexible, semi-rigid, rigid polyurethane foams, elastomers, coatings, etc.
Polyurethane Catalyst A33 Catalyst A33 Foaming Catalyst A33 CAS 280-57-9 Dabco 33-LV Niax A-33 Jeffcat TD-33A Lupragen N201 Tegoamin 33 PC CAT TD33 Addocat 105 TEDA L33 Foaming Catalyst 33-LV Polyurethane Foaming Catalyst 33-LV Catalyst A-33 Polyurethane Catalyst A-33 Liquid Catalysts
Storage and Transportation:
Should be kept sealed and stored in a dry, cool and ventilated warehouse
Packing:
200KG/drum Storage: it is recommended to store in dry and cool area with proper ventilation. Please fasten the packaging cover as soon as possible after the original packaging to prevent the mixing of other substances such as moisture and other substances that may affect the performance of the product. Store in a cool and dry place, keep the container sealed and avoid contact with oxides. Do not inhale dust and avoid contact with skin and mucous membranes. Smoking, eating and drinking are prohibited in the workplace. After work, shower and change clothes. Store contaminated clothing separately and wash before use. Maintain good hygiene practices.
